TG推桿式電動開窗器?TG?Push-rod?Actuator

技術特點

◆?推桿電機結構設計緊密，重量輕，采用直流電機齒輪減速，達到行程后可自動關閉。

◆大于10000次推出及拉回的壽命設計，經負載測試合格，特別適用于百葉窗、上懸、中懸窗等多種窗型的開啟。

◆內置行程電子過載保護電路，并可多機聯接驅動。

◆保護等級：IP54。

◆開啟行程30-600mm，可根據用戶需求定制。

◆產品符合國標：GB/T 19001-2008，通過歐盟CE認證和中國***消防電子產品認證。

Technical Features

◆ Compact structure of push rod motor, light weight, DC motor gear reducer, can automatically close after reach maximum stroke.

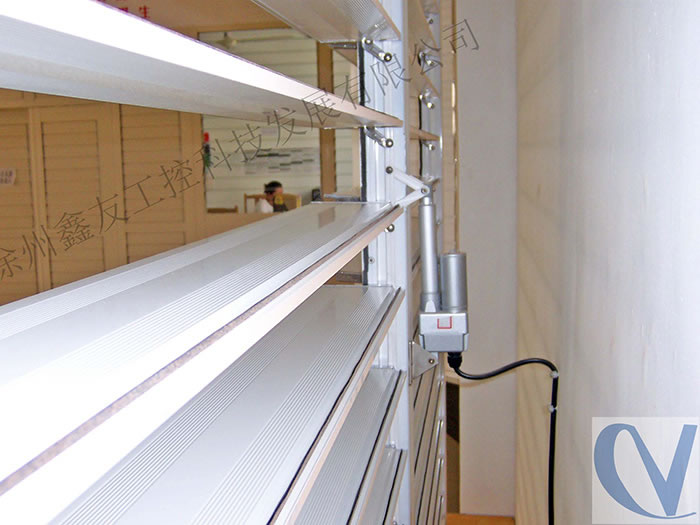

◆ Designed life: more than 10000 times push-pull cycles. Especially suitable for various louvers, top-hinged window, center-

pivoted window, etc.

◆ Overload protection circuits built-in, linkage of multi-machines.

◆ Protection class: IP54.

◆ The stroke can be customized according to customer requirements.

◆ In conformity with GB/T 19001-2008, passed the CE &CCC certification.

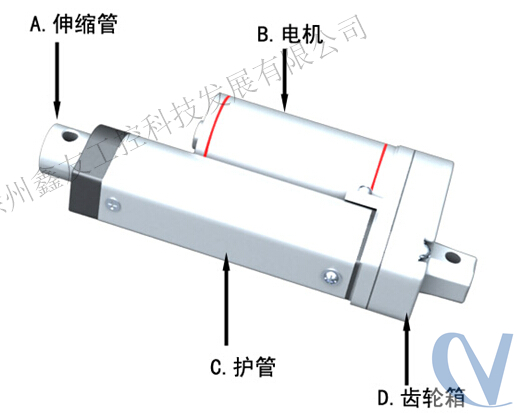

產品結構圖/ Product structure

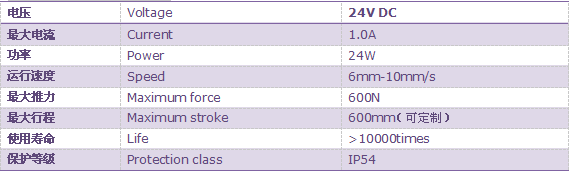

技術參數/Technical Date
